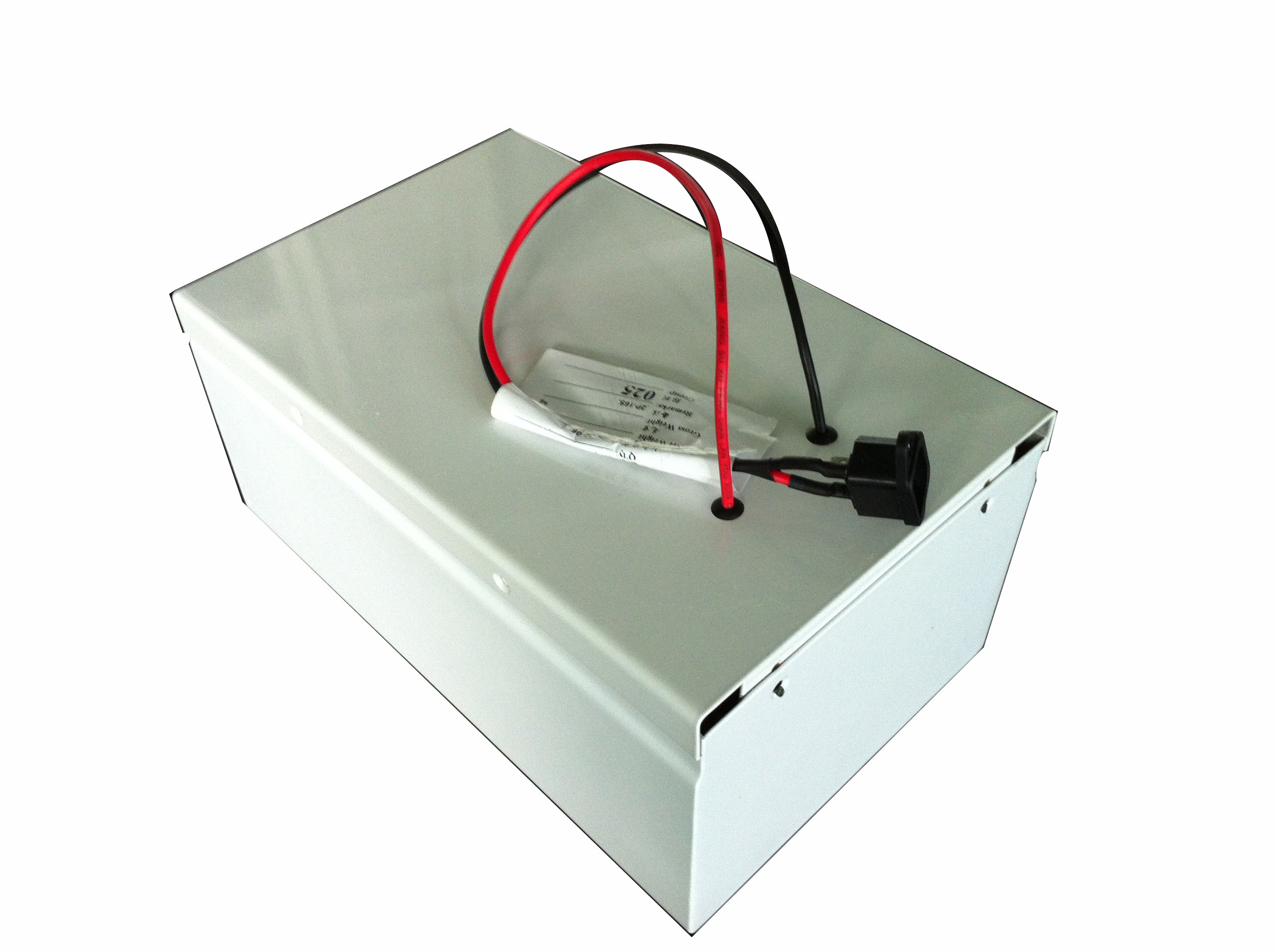

Electric Scooter 20Ah Lithium Battery Pack for 48V LiFePO4 Battery Pack CE / ROHS / ISO

    Buy cheap Electric Scooter 20Ah Lithium Battery Pack for 48V LiFePO4 Battery Pack CE / ROHS / ISO from wholesalers

    Buy cheap Electric Scooter 20Ah Lithium Battery Pack for 48V LiFePO4 Battery Pack CE / ROHS / ISO from wholesalers
    • Buy cheap Electric Scooter 20Ah Lithium Battery Pack for 48V LiFePO4 Battery Pack CE / ROHS / ISO from wholesalers

    Electric Scooter 20Ah Lithium Battery Pack for 48V LiFePO4 Battery Pack CE / ROHS / ISO

    Ask Lasest Price
    Brand Name : HECO
    Certification : CE,ETL,RoHS ,MSDS,UN38.3, ISO/TS14001
    Model Number : HK-ES-48F20-02
    Price : Negotiable
    Delivery Time : Sample: within 15 days; bulk order:25~60 days, based on the order quantity
    Payment Terms : T/T (30% advance payment, 70% balance payment to deliver the goods), Western Union, Paypal
    Supply Ability : 1000 packs/ month
    • Product Details
    • Company Profile

    Electric Scooter 20Ah Lithium Battery Pack for 48V LiFePO4 Battery Pack CE / ROHS / ISO

    Electric Scooter 20Ah Lithium Battery Pack for 48V LiFePO4 Battery Pack CE / ROHS / ISO


    Quick Detail:


    1. Soft-pack LiFePO4 cells inside

    2. Compact in size and light in weight

    3. BMS manages to each cell for high reliability

    4. Extra long cycle life - 5 times life of Lead Acid and 2 times of NiMH

    5. Extremely safe: No explosion, no fire under collision, over charged or short circuit


    Description:


    20Ah Lithium Battery Pack for Electric Scooter, 48V LiFePO4 Battery Pack CE, ROHS, ISO

    Compared with the same capacity lead-acid battery, LiFePO4 battery is 1/3 smaller in size, 2/3 lighter in weight, 5 times longer in cycle life, more economic and eco-friendly.

    LiFePO4 battery replacing Lead acid battery is an inevitable trend.

    Compared with same capacity Li-NixCoyMnz battery, LiFePO4 battery is 2.5 times longer in cycle life, also most the same in weight & size.


    Basic knowledge:


    Lithium ion battery, classified by the anode material, can be divided into li-MH,Li-Co2, Li-NixCoyMnz, and Li-FePO4, etc.

    Classified by the battery shell, can be divided into plastic shell, stell/iron shell and aluminum shell.

    All these lithium ion batteries have their own advantages. The technical data of their comparative performances is as follows:


    Different Lithium Battery Material Comparision Table
    NO.ParametersLi-Co2Li-NiCoMnLi-MnO2LiFePO4
    1Energy density (g/cm3)2.8~3.02.0~2.32.2~2.41.0~1.4
    2Specific area (m2/g)0.4~0.60.2~0.40.4~0.812~20
    3Capacity density (Ah/kg)135~140155~165100~115130~140
    4Voltage3.73.63.63.2
    5Cycle life>300>800>500>2000
    6Transition metalPoorPoorRichVery rich
    7Material costVery highHighCheapCheap
    8Environmental performanceContain CoContain Co & NiNon-toxicNon-toxic
    9Safety performanceBadGoodBetterExcellent
    10Application areaSmall batterySmall battery Small power batteryPower batteryPower battery Large capacity power supply

    Specifications:


    Battery material

    Lifepo4

    Nominal Voltage

    48V

    Rated Capacity

    20Ah

    Pack Dimension

    customized made

    Internal Impedance

    ≤80mΩ

    Charge Voltage

    36.8V~58.4V

    Charge Current

    10A~25A (0.2C~0.5C)

    Rated Discharge Current

    20A(1C5A)

    Peak Discharge Current

    60A(3C5A)

    Charging Mode

    CC/CV

    Pack weight

    About 12kg

    Over Current Protection

    Customized design

    Cycle Life

    About 1200 Cycles

    Charge Temperature

    0-45 ℃

    Discharge Temperature

    -20-55 ℃

    Certificates

    CE,RoHS ,MSDS,ISO/TS14001

    The data on the table is only for reference


    Product advantages:


    1. Long cycle life (2000 cycles) is several times greater than Ni-MH, Ni-Cd or lead-acid.
    2. No toxic, or polluting material(such as lead, cadmium, mercury) is contained in lithium battery, which is a kind of green battery.
    3. High safety. LiFePO4 is an intrinsically safer cathode material than Lithium-ion since exothermic reactions can not occur in batteries based on this material LiFePO4 cells do not incinerate or explode under extreme conditions.
    4. Good performance in high-current discharge cycles. We can design different capacity and size according to your demands.
    For many applications, our battery systems result in significantly lower total cost of ownership over lead acid because lighter-weight, longer-life batteries means fewer replacements, reduced maintenance and service costs, less shipping and material handling costs, and lower total inventory carrying costs.


    Company advantages:


    1. Advanced polymer lithium-ion battery technology system ensure the correct technical direction and advanced leading technology
    2. Excellent procedure quality tracking control system ensure HECO battery’s excellent performance and good consistency.
    3. One-stop lithium battery system solutions. Heco’s research and development team include electronic engineer, mechanical engineer, structure engineer, whom could offer our clients one stop solutions including BMS, charger, battery pack structure, and overall applications.
    4. Intimate and in time reacting service system. We always try to offer more than expected, do more than required.


    Tag: electric scooter battery, 48V lithium battery, 20ah lifepo4 battery
