Electric Bicycle 10Ah 48V LiFePO4 Battery Pack With Control Box

    Buy cheap Electric Bicycle 10Ah 48V LiFePO4 Battery Pack With Control Box from wholesalers

    Buy cheap Electric Bicycle 10Ah 48V LiFePO4 Battery Pack With Control Box from wholesalers
    • Buy cheap Electric Bicycle 10Ah 48V LiFePO4 Battery Pack With Control Box from wholesalers

    Electric Bicycle 10Ah 48V LiFePO4 Battery Pack With Control Box

    Ask Lasest Price
    Brand Name : HECO
    Certification : CE,ETL,RoHS ,MSDS,UN38.3, ISO/TS14001
    Model Number : HC-BK-48F10-01
    Price : Negotiable
    Delivery Time : Sample: within 15 days; bulk order:25~60 days, based on the order quantity
    Payment Terms : T/T (30% advance payment, 70% balance payment to deliver the goods), Western Union, Paypal
    Supply Ability : 2000 packs/ month
    • Product Details
    • Company Profile

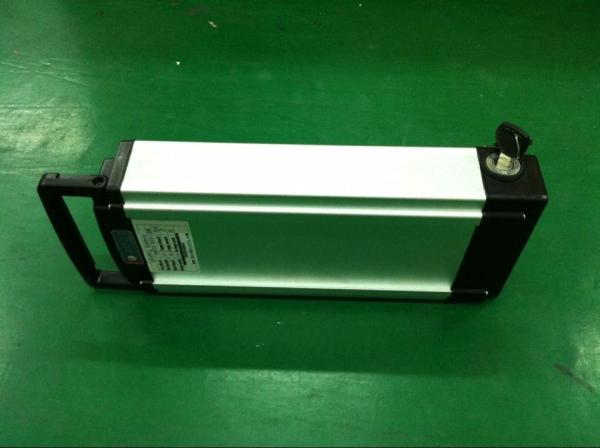

    Electric Bicycle 10Ah 48V LiFePO4 Battery Pack With Control Box


    Electric Bicycle 10Ah 48V LiFePO4 Battery Pack With Control Box


    Quick Detail:


    1. Soft-pack LiFePO4 cells inside

    2. Compact in size and light in weight

    3. BMS manages to each cell for high reliability

    4. Extra long cycle life -5 times life of Lead Acid and 2 times of NiMH

    5. Extremely safe: No explosion, no fire under collision, over charged or short circuit

    6. Control box is equipped


    Description:


    48V 10ah e-bike lithium ion battery with control box


    Compared with the same capacity lead-acid battery, LiFePO4 battery is 1/3 smaller in size, 2/3 lighter in weight, 5 times longer in cycle life, more economic and eco-friendly.

    LiFePO4 battery replacing Lead acid battery is an inevitable trend.

    Compared with same capacity Li-NixCoyMnz battery, LiFePO4 battery is 2.5 times longer in cycle life, also most the same in weight & size.


    Basic knowledge:


    Lithium ion battery, classified by the anode material, can be divided into li-MH,Li-Co2, Li-NixCoyMnz, and Li-FePO4, etc.

    Classified by the battery shell, can be divided into plastic shell, stell/iron shell and aluminum shell.

    All these lithium ion batteries have their own advantages. The technical data of their comparative performances is as follows:


    Different Lithium Battery Material Comparision Table
    NO.ParametersLi-Co2Li-NiCoMnLi-MnO2LiFePO4
    1Energy density (g/cm3)2.8~3.02.0~2.32.2~2.41.0~1.4
    2Specific area (m2/g)0.4~0.60.2~0.40.4~0.812~20
    3Capacity density (Ah/kg)135~140155~165100~115130~140
    4Voltage3.73.63.63.2
    5Cycle life>300>800>500>2000
    6Transition metalPoorPoorRichVery rich
    7Material costVery highHighCheapCheap
    8Environmental performanceContain CoContain Co & NiNon-toxicNon-toxic
    9Safety performanceBadGoodBetterExcellent
    10Application areaSmall batterySmall battery Small power batteryPower batteryPower battery Large capacity power supply

    Applications:


    electric bike, electric wheelchair, electric scooter, electric motorcycle, golf cart, electric robot, vacuum cleaner, electric mower, wind/solar energy storage ...


    Specifications:


    Items

    Characteristic parameters

    Remark

    Standard voltage

    48V


    Standard capacity

    10Ah

    0.2C5A discharge

    Resistance

    <110mΩ

    AC Imp

    Standard charge current

    0.2C (2A)


    Max charge current

    0.5C (5A)


    Standard discharge current

    1C


    Max discharge current

    2.5C


    Over-current protection

    YES


    Dimensions

    410*150*73m


    Weight

    <6Kg


    Charge/discharge port

    or

    or


    Charing mode(CC/CV)

    standard

    0.2C5A×6 hrs.(reference value)


    fast

    0.5C5A×2.5 hrs.(reference value)


    Working temperature range

    charge

    0℃~+45℃


    discharge

    -20℃~+55℃


    Storage Temperature Range

    -40℃~+40℃


    Storage environment humidity


    5%~90% RH



    Product advantages:


    1. Long cycle life (2000 cycles) is several times greater than Ni-MH, Ni-Cd or lead-acid.
    2. No toxic, or polluting material(such as lead, cadmium, mercury) is contained in lithium battery, which is a kind of green battery.
    3. High safety. LiFePO4 is an intrinsically safer cathode material than Lithium-ion since exothermic reactions can not occur in batteries based on this material LiFePO4 cells do not incinerate or explode under extreme conditions.
    4. Good performance in high-current discharge cycles. We can design different capacity and size according to your demands.
    For many applications, our battery systems result in significantly lower total cost of ownership over lead acid because lighter-weight, longer-life batteries means fewer replacements, reduced maintenance and service costs, less shipping and material handling costs, and lower total inventory carrying costs.


    Company advantages:


    1. Advanced polymer lithium-ion battery technology system ensure the correct technical direction and advanced leading technology
    2. Excellent procedure quality tracking control system ensure HECO battery’s excellent performance and good consistency.
    3. One-stop lithium battery system solutions. Heco’s research and development team include electronic engineer, mechanical engineer, structure engineer, whom could offer our clients one stop solutions including BMS, charger, battery pack structure, and overall applications.
    4. Intimate and in time reacting service system. We always try to offer more than expected, do more than required.


    Tag: 48V 10ah e-bike battery, 48V 10ah lithium ion battery, electric bicycle rechargeable battery
