    50KWh Solar Energy Storage Battery Bank , 48V 1000AH Lithium Ion Batteries with RS485 Communication

    Ask Lasest Price
    Brand Name : HECO
    Model Number : ES4850K
    Certification : MSDS,CE,UN38.3, IEC62133
    Price : Negotiable
    Payment Terms : T/T (30% advance payment, 70% balance payment to deliver the goods), Western Union, Paypal
    Supply Ability : 1000 packs/ month
    Delivery Time : Sample: within 25 days;bulk order:25~60 days, based on the order quantity
    • Product Details
    • Company Profile

    50KWh Solar Energy Storage Battery Bank , 48V 1000AH Lithium Ion Batteries with RS485 Communication


    Overview:
    With the emergence of wind & solar power and other new energy sources, the development of intelligent grid technology as well as the large -scale energy storage station is becoming to meet peak power allocation. HECO is developing he environmental-protection lithium-ion energy storage battery with the lightest, fast charge and discharge, cycle life more than than 2,000 times to meet the future demand of energy storage stations and new energy vehicle charging stations. HECO strives to become an advanced enterprise in the energy storage battery industry field.

    HECO developped Rack style and Powewall style lithium ion battery bank with excellent safety, high energy density, cell voltage detection, which could be connected with BMS to monitor the matter as well, is most suitable solution for energy storage.


    Description:

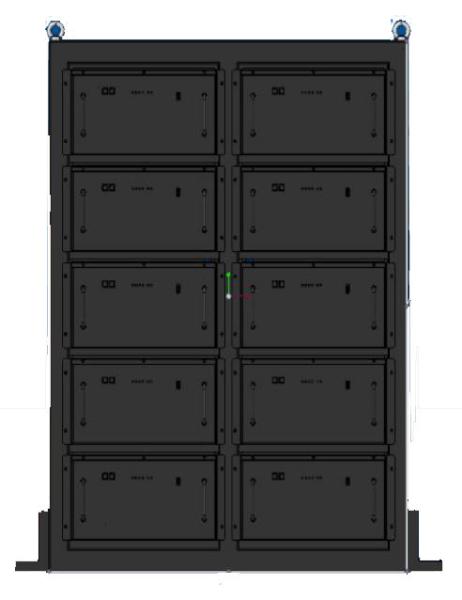

    50KWh Solar Energy Storage Battery , 48V 1000AH Lithium Battery Bank with RS485 Communication Rack Style

    Compared with the same capacity lead-acid battery, LiFePO4 battery is 1/3 smaller in size, 2/3 lighter in weight, 5 times longer in cycle life, more economic and eco-friendly.
    LiFePO4 battery replacing Lead acid battery is an inevitable trend.


    Specifications:

    MODEL#48/15K-120/22548/20K-120/225ES4820K
    DATASHEET
    Intergrated PCM/BMSBMS in, with display panel
    Output Capacity(Wh), D0D=80%15K20K25K
    Nominal voltage (V)484848
    Nominal capacity (Ah)300400500
    System configuration

    3pcs 48v 100ah module

    4pcs 48V 100AH module

    5pcs 48V 100AH moudle

    Dimensions (L*W*H in mm)600*600*715770*580*1300600*600*1600
    Constant charge/ discharge current (A)120120300
    Maximum charge/ discharge current (A)150 (15 seconds)225 (3 minutes)500 (15s)
    Standard Charge Voltage (V)58.458.458.4
    Discharge cut-off voltage (V)50.450.450.4
    Approx. Weight (Kg)150200250
    WORKING CONDITION

    Operating temp. : -20 ~ 60℃
    Humidity : max 95%

    ENCLOUSURE
    Common characteristics

    Material : Iron
    Colour : Black or Ivory White

    Battery connector

    Anen Connector
    or according to customers' requirement

    STANDARDS
    SafetyEN61000-6-1, EN61000-6-3






    Company advantages:
    1. Advanced LiFePO4 lithium battery technology system ensure the correct technical direction and advanced leading technology.
    2. Excellent procedure quality tracking control system ensure HECO battery’s excellent performance and good consistency.
    3. One-stop lithium battery system solutions. Heco’s research and development team include electronic engineer, mechanical engineer, structure engineer, whom could offer our clients one stop solutions including BMS, charger, battery pack structure, and overall applications.
    4. Intimate and in time reacting service system. We always try to offer more than expected and do more than required.

    Tag: 50KWh energy storage battery bank, 48V 1000ah lithium battery bank
